Product Details:
Payment & Shipping Terms:
|
| GRADE: | TP304/TP316L | SIZE: | 6*1,10*1,12*1,15.88*1.65 |
|---|---|---|---|
| LENGTH: | AS CUSTOMER REQUEST | STANDARD: | ASTM A269/213 |
| SURFACE: | AP OR POLISHED | PACKAGE: | PACKAED IN WOODEN CASE |
| High Light: | small steel tube,small stainless steel pipe |
||

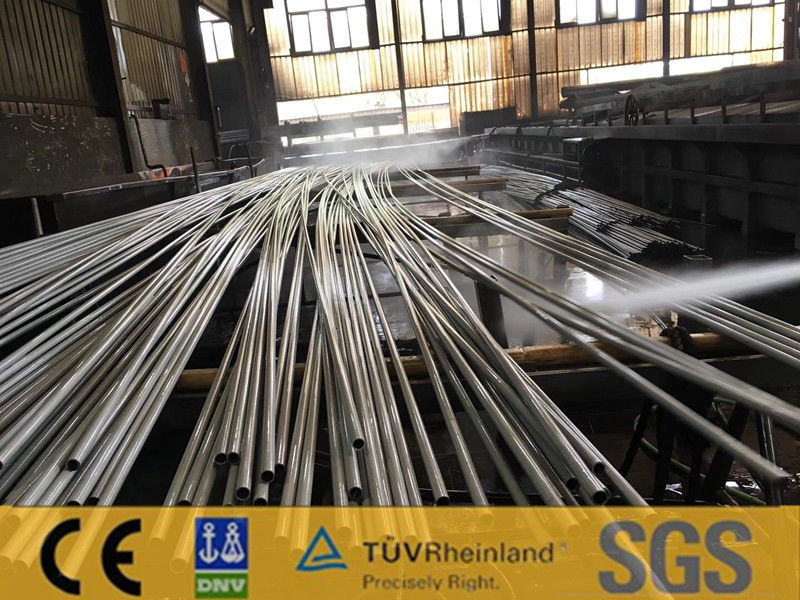

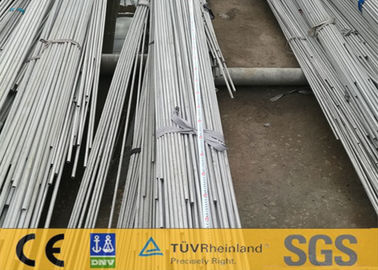

SMALL SIZE STAINLESS STEEL TUBE
DESCRIPTION:
1) GRADE:
TP304
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.08 | 0.38 | 1.35 | 0.036 | 0.002 | 18.15 | 8.020 | / | / | / | / |
TP304L
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.015 | 0.38 | 1.35 | 0.029 | 0.002 | 18.15 | 8.090 | / | / | / | / |
TP316L:
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.029 | 0.61 | 1.05 | 0.038 | 0.002 | 16.02 | 10.050 | 2.05 | / | / | / |
2)
| Material Grade | TP316L |
| Raw Materials | Source from Tsing Shan Group, WALSIN, YXSS etc. |
| Standard | ASTM A213/269 |
| Outer Diameter | 6*1 8*1MM |
| Wall Thickness | 1MM |
| Length | 2M/3M/4M/6M/12M or Random Length |
| Process Method | Cold Rolled and Cold Drawn |
| Delivery Condition | Annealed and Pickled Or Polished |
| Heat Treatment | Solution annealed 1040℃ |
| NDT Testing | UT (Ultrasonic Testing), ET (Eddy Current Testing), HT (Hydrosatic Testing) |
| MTC | EN10204.3.1 |
| Ends | PE (Plain Ends) |
| Marking | Logo standard materials grade sizes heat no. Or as customers request |
| Package | Packing by bundles or Wooden Case. |
| Certificate | PED BV TUV ISO TS etc |
| Application | Heat Exchange |
| Characteristic | Corrosion resistance/High temperature resistance/Non-Magnetic |
| Delivery time | Within 55 days after get the deposit. Allowing 5 days as flexibility |
| Lead Port | Main Port In China |
| Price Term | FOB/CNF/CIF etc |
| Payment Term | TT 30% in advance, the balance against BL copy or LC at sight |
| Main Market | Middle East/ Southeast Asia/ South America/South Africa etc |
| Advantage | 1.Short delivery time 2.Quality assurance 3.Competitive price 4.Superior Service |
3) We have ready stock raw material:
Our Services
--Reply your inquiry in 24 hours.
--Special discount and protection of sales are provided to our distributor.
--Sample: we can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side,the charges will be rebounded when we have formal order.
--Professional factory: We are manufacturer since 1992, we can always offer you competitive price with high quantity.
--QC system: 100% inspection before shipment.
