| Steel Grade: | TP316L | OD: | 73 |
|---|---|---|---|
| WT: | 16 | Length: | 6M/6.1M Or Random Length |
| Delivery Condition: | Annealed And Pickled | Shape: | Round And Hollow |
| Name: | Heavy Wall Steel Tube | Ends: | Plain Ends |
| High Light: | heavy wall steel tube,heavy wall stainless steel tubing |
||

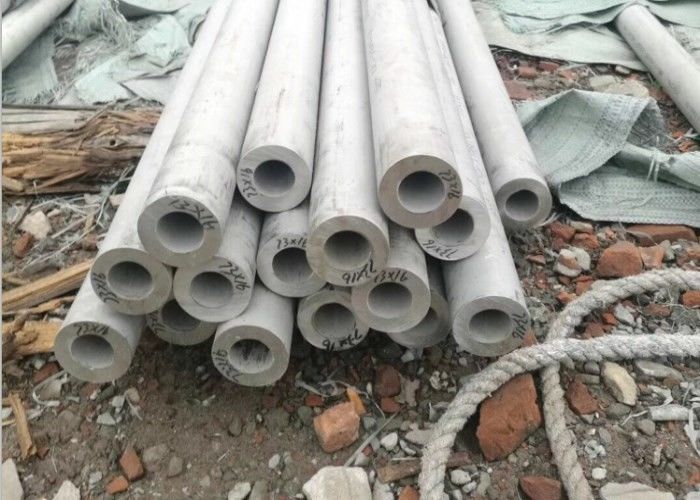

Products Name: 73*16 Heavy Wall Seamless Pipe according ASTM A312 TP316L Austenitic Stainless
heavy wall steel tube Description:
1) Steel Grade: TP316L
2) Standard: ASTM A312
3) OD: 73mm
4) WT: 16mm
5) Length: 6m/6.1m or Random length.
6) Process Method: Cold Rolled or Cold Drawn
7) Package: Packing by bundles or wooden case.
8) Delivery time: 65 days to 75 days after get the deposit.
9) Payment Term: TT 25% in deposit, the balance against BL copy or LC at sight.
10) Delivery Condition: Annealed and Pickled
11) Heat Treatment: Solution annealed 1040℃
12) Certificate: ISO PED TS
13) Characteristic: Corrosion resistance/High temperature resistance/Non-Magnetic
14) Chemical Composition:
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP304 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304/304L | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316L | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP321 | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x(C+N) | |
| TP310S | 0.080 | 1.00 | 2.00 | 0.045 | 0.030 | 24.0-26.0 | 19.0-22.0 | 0.75 |
1 Widely used in the mechanical treatment field, petrochemical industry, transport and construction field
2 Ordinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;
3 The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etc
4 Can be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc.
Welcome to enquiry!
