| Standard: | A312/A269 | Steel Grade: | TP316L |
|---|---|---|---|
| Sizes: | 25.4*2*6100MM | Delivery Condition: | Annealed And Pickled |
| MTC: | EN10204.3.1 | Process Method: | Cold Rolled And Cold Drawn |
| Heat Treatment: | Solution Annealed 1040℃ | Package: | Packing By Bundles |
| High Light: | small steel tube,small stainless steel pipe |
||

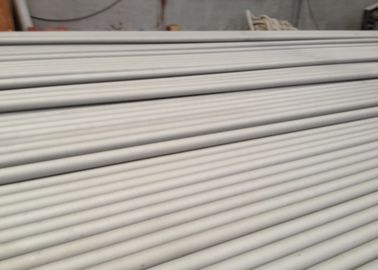

Production Name: Small Diameter Tubing According ASTM A269 TP316L 25.4*2*6.1M Austenitic Stainless
Description:
1) Steel Grade: TP316L
2) Standard: ASTM A269
3) OD: 25.4mm
4) WT: 2mm
5) Length: 6.1m
6) Process Method: Cold Rolled and Cold Drawn
7) Quality: MTC EN10204.3.1

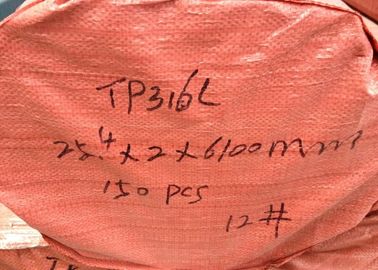

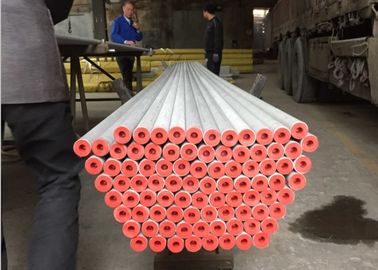

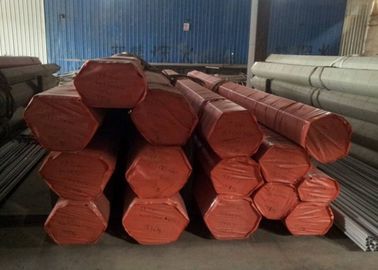

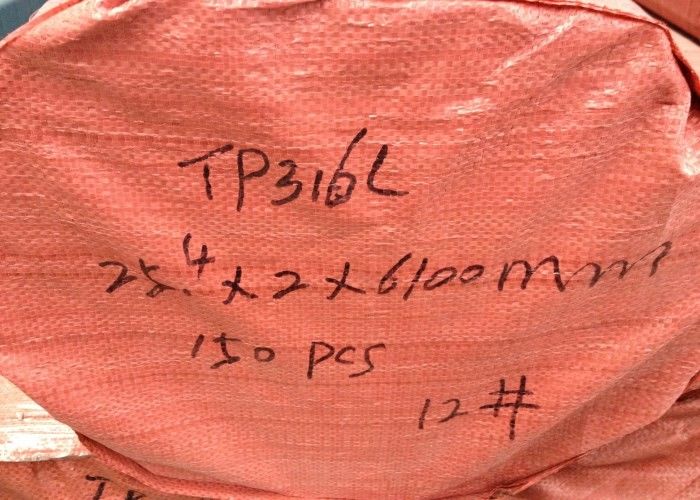

8) Package: Packing by bundles
9) Delivery time: 60 after get the deposit.
10) Price Term: FOB/CNF/CIF etc.
11) Payment Term: TT 30% in advance, the balance against BL copy or LC at sight.
12) Delivery Condition: Annealed and Pickled
13) Heat Treatment: Solution annealed 1040℃
14) Application: Heat Exchange/Boiler/Fluid and Gas Transport etc.
15) Characteristic: Corrosion resistance/High temperature resistance/Non-Magnetic
16) Chemical Composition:
| C(max) | Si(max) | Mn(max) | P(max) | S(max) | Cr | Ni | Mo | Ti | |
| TP316L | 0.035 | 1.00 | 2.00 | 0.045 | 0.030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
17) Mechanical Testing
| ITEM | Tensile Strength Mpa | Yield Strength Mpa | Elongation % | Hardness |
| SPEC. | ≥485 | ≥170 | ≥35 | ≤90 |
| 25.4*2 | 560 | 255 | 40 | 80 |
