Product Details:
Payment & Shipping Terms:
|
| GRADE: | TP304/TP316L | SIZE: | 6*1,10*1,12*1,15.88*1.65 |
|---|---|---|---|
| LENGTH: | AS CUSTOMER REQUEST | STANDARD: | ASTM A269 |
| SURFACE: | AP OR POLISHED | PACKAGE: | PACKAED IN WOODEN CASE |
| High Light: | small steel tube,2 stainless steel pipe |
||

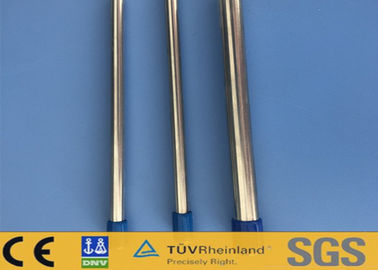

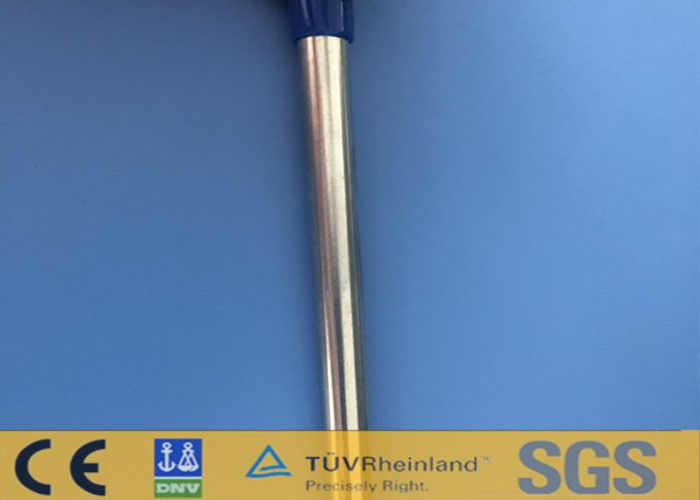

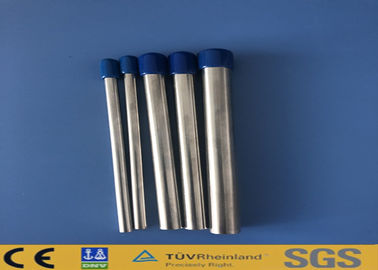

SMALL SIZE STAINLESS STEEL TUBE
DESCRIPTION:
1)GRADE:
TP304
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.08 | 0.38 | 1.35 | 0.036 | 0.002 | 18.15 | 8.020 | / | / | / | / |
TP304L
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.015 | 0.38 | 1.35 | 0.029 | 0.002 | 18.15 | 8.090 | / | / | / | / |
TP316L:
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.029 | 0.61 | 1.05 | 0.038 | 0.002 | 16.02 | 10.050 | 2.05 | / | / | / |
2) DETAILS:
| Material Grade | SUS304,SUS316L |
| Raw Materials | Source from Tsing Shan Group, WALSIN, YXSS etc. |
| Standard | ASTM A269 |
| Outer Diameter | 6*1 8*1 10*1 12*1 |
| Wall Thickness | 1MM |
| Length | 2M/3M/4M/6M/12M or Random Length |
| Process Method | Cold Rolled and Cold Drawn |
| Delivery Condition | Bright Annealed |
| Heat Treatment | Solution annealed 1040℃ |
| NDT Testing | UT (Ultrasonic Testing), ET (Eddy Current Testing), HT (Hydrosatic Testing) |
| MTC | EN10204.3.1 |
| Ends | PE (Plain Ends) |
| Marking | Logo standard materials grade sizes heat no. Or as customers request |
| Package | Packing In Wooden Case. |
| Certificate | PED BV TUV ISO TS etc |
| Application | MACHINE |
| Characteristic | Corrosion resistance/High temperature resistance/Non-Magnetic |
| Delivery time | Within 65 days after get the deposit. Allowing 5 days as flexibility |
| Lead Port | Ningbo or Shanghai Port China or as customer’s request |
| Price Term | FOB/CNF/CIF etc |
| Payment Term | TT 30% in advance, the balance against BL copy or LC at sight |
| Main Market | Middle East/ Southeast Asia/ South America/South Africa etc |
| Advantage | Reasonable Price with Excellent Quality Materials. |
Mechanical Testing TP304
| Item | Tensile Strength Mpa | Yield Strength Mpa | Elongation % | Hardness |
| Spec. | ≥515 | ≥205 | ≥35 | ≤90 |
| 6*1MM | 565 | 260 | 40 | 80 |
