Product Details:
Payment & Shipping Terms:
|
| PROCESS: | COLD-DRAWING | SURFACE: | 2B OR POLISHED |
|---|---|---|---|
| SIZE: | 1/8''-16'' | LENGTH: | 6M OR AS CUSTOMER REQUEST |
| GRADE: | TP304/316/321/310S | STANDARD: | ASTM A312 |
| High Light: | square steel pipe,2 inch square steel tubing |
||

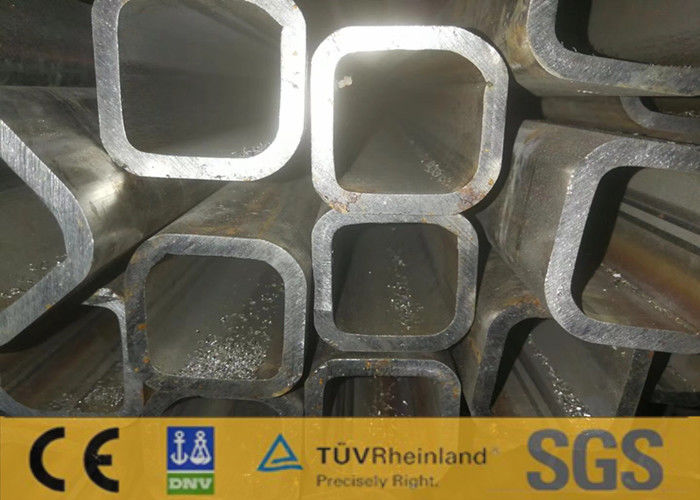

STAINLESS STEEL SQUARE PIPES
DESCRIPTION:
1) GRADE:
TP304
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.08 | 0.38 | 1.35 | 0.036 | 0.002 | 18.15 | 8.020 | / | / | / | / |
TP304L
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.015 | 0.38 | 1.35 | 0.029 | 0.002 | 18.15 | 8.090 | / | / | / | / |
TP316L:
| C | Si | Mn | P | S | Cr | Ni | Mo | Ti | N | Cu |
| 0.029 | 0.61 | 1.05 | 0.038 | 0.002 | 16.02 | 10.050 | 2.05 | / | / | / |
2) DETAILS:
| Material Grade | S31603/S30408, etc. |
| Raw Materials | Source from Tsing Shan Group, WALSIN, YXSS etc. |
| Standard | ASTM |
| Outer Diameter | 100*100*3 150*150*4MM |
| Wall Thickness | 1MM-24MM |
| Length | 2M/3M/4M/6M/12M or Random Length |
| Process Method | Cold Rolled and Cold Drawn |
| Delivery Condition | Annealed and Pickled |
| Heat Treatment | Solution annealed 1040℃ |
| NDT Testing | UT (Ultrasonic Testing), ET (Eddy Current Testing), HT (Hydrosatic Testing) |
| MTC | EN10204.3.1 |
| Ends | SQUARE |
| Marking | Logo standard materials grade sizes heat no. Or as customers request |
| Package | Packing by bundles or Wooden Case. |
| Certificate | PED BV TUV ISO TS etc |
| Application | Heat Exchange |
| Characteristic | Corrosion resistance/High temperature resistance/Non-Magnetic |
| Delivery time | Within 25 days after get the deposit. Allowing 5 days as flexibility |
| Lead Port | Ningbo or Shanghai Port China or as customer’s request |
| Price Term | FOB/CNF/CIF etc |
| Payment Term | TT 30% in advance, the balance against BL copy or LC at sight |
| Main Market | Middle East/ Southeast Asia/ South America/South Africa etc |
| Advantage | Reasonable Price with Excellent Quality Materials. |
Mechanical Testing S30408
| Item | Tensile Strength Mpa | Yield Strength Mpa | Elongation % | Hardness |
| Spec. | ≥515 | ≥205 | ≥35 | ≤90 |
| 150*150*4 | 565 | 260 | 40 | 80 |
3) CERTIFICATE:
We Have High Reputation Based On Best Quality Products
We Can Offer Competitive Price For Your Buiness;
Our After-Sell Service Team Will Help You Solving All The Related Problems ;
Shortest And Stable Delivery Time;
We Can Provide Stainless Steel Processing Services.
